Made in USA
The STS Inks XPD-924D 24-inch DTF Printer boasts staggered dual AccuFine HD printheads for enhanced productivity, delivering high-quality transfers with smooth gradations and fine lines.
As the fastest dual-head printer on the market, it maintains true quality and consistency in every print. Our new XPD-924 features a built-in white ink circulation system that operates continuously, ensuring a seamless flow of ink.
This advanced feature reduces the likelihood and the need for maintenance, resulting in increased uptime and greater profitability for our customers!
The XPD-924D is packed with standard features such as:
- Dropmaster 2 (Automatic Bi-Directional alignments),
- Feed Master (Automatic Feed Roller Adjustment),
- i-screen Print Effects- Multiple Waveforms that Mitigate Banding.
- Media Tracker (Roll Remainder Tracking)
- White Ink Circulation
- Auto Cleaning and Maintenance
The XPD-924D includes Digital Factory RIP 11 Software, bundled with the printer for the ultimate balance of speed and quality. Pre-installed high quality color profiles at various resolutions to match our ink and film make this printer instantly ready for production.
XPD-924D printer features include
- High-precision Heavyduty Aluminum Rail System for High Quality and Stable Printing.
- Ease-of-use Side Mounted LAN and Power Plugs and LED Operation Panel.
- New AccuFine HD Printheads Provide Faster Speeds with Exceptional Quality.
- Built-in Sensors for Operator-Driven Automatic Bi-directional and Page feed Alignments.
- Improved front Dryer system for 20% Faster Ink Dry Times.
- Updated Media Angles and Media Feeding Mechanism to Allow for Easy Loading and Page Feed for DTF Film.
- Internal LED lighting for Unobstructed Print.
- Viewing and Maintenance Access.
- Includes the Mutoh Status Monitor (MSM) Companion Software for Convenience and Efficiency:
Records Print History, Job Cost Analysis, Remote Access. - Complete turnkey solutions that produce exceptional transfers that are super soft and colorful with excellent elasticity, and washability which creates the industry’s finest hand feel transfers.
XPD-924D Specifications
| Printing method | Drop-on-demand Micro Piezo Inkjet Technology |
|---|---|
| Print head height | Four-level adjustment: 1.5mm, 2.0mm, 2.5mm, 4.0mm |
| Print head | 2 (staggered) |
| Max print resolution | 1200x1200dpi (1200/900/600/300 dpi print modes) |
| Media width | 600 cm 25″ |
| Media capacity | ø 5.9” dia / 2” & 3” cores / Roll media 66lbs or less |
| Max media thickness | Low 1 0.3mm, Low2 0.8mm, Mid. 1.3mm, High 2.8mm |
| Max printable width | 24.5 in |
| Max print speed | 17.5 sqm/hr – 190 sqft/hr |
| RIP software | CADlink™ Digital Factory 11 |
| Interface | Gigabit-Ethernet (1000BASE-T ) |
| Power Requirements | AC 100-120V± 10%, 50/60Hz ± 1Hz |
| Printing Environment | Temperature: 68-77°F/ 20-26° C Humidity: 40-55% |
| Power Consumption | Main: Operation status 700W or less Standby: 30W or less |

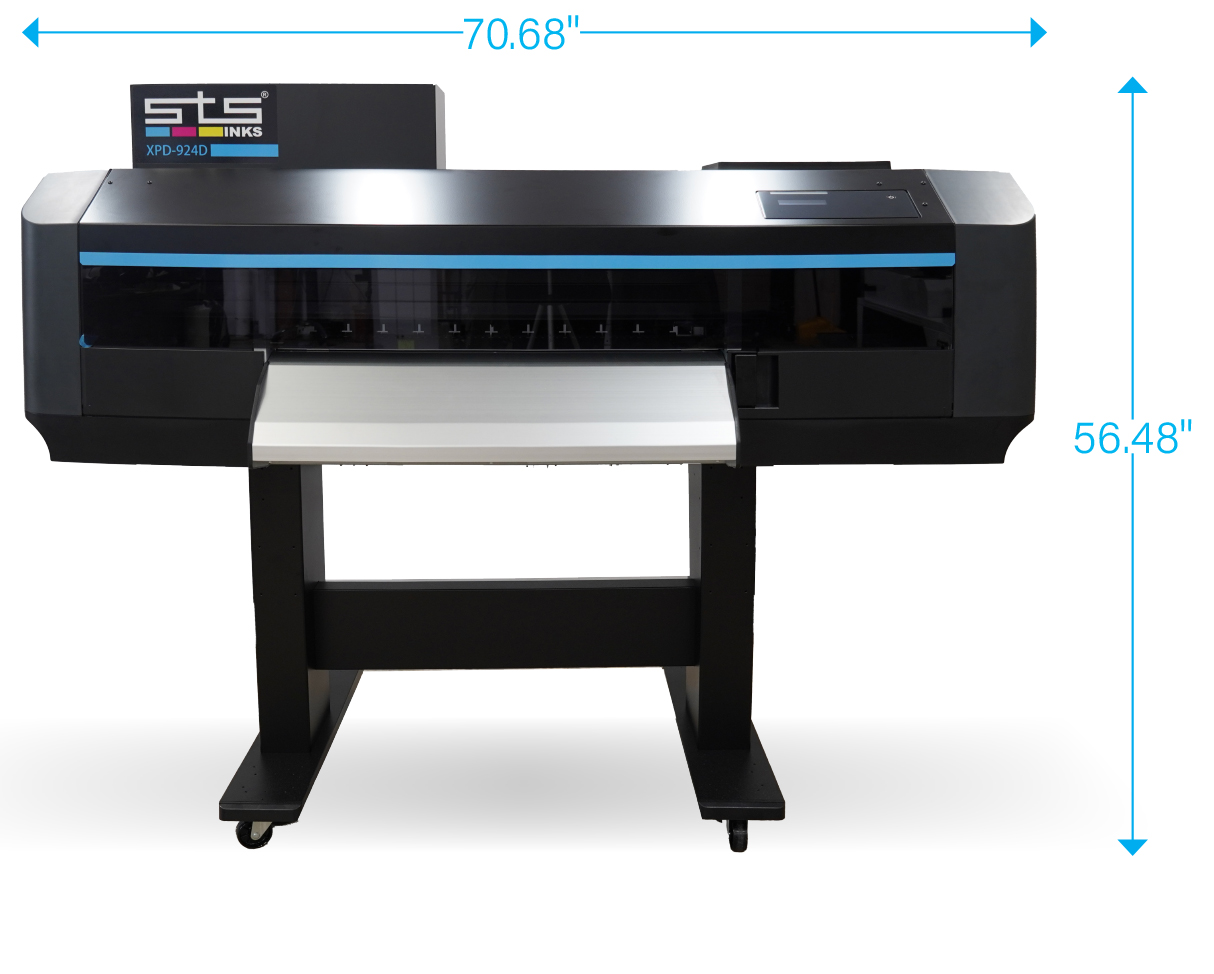

| Dimensions (WxDxH) | Printer including stand: 70.68” X 35.23” X 56.48” cover closed |
| Weight | Body: 310lb | Stand: 70.54lb / Body: 140kg | Stand: 32kg |
| Ink | Type | DTF |
|---|---|---|
| Ink Set | 4 COLOR (CMYK) | WHITE | |
| Volume | 500ml Direct to Film Ink Catridge XPD | |
| No. of slots | 6 |
| Resolution 900×600 |
Pass | 3 |
|---|---|---|
| Printing Speed [m2/h] | 17.5 | |
| Printing Speed [f2/h] | 190.0 | |
| Printing Speed [lm/h] | 29.0 | |
| Printing Speed [lft/h] | 96.0 | |
| Time for 328 lft Roll [h] | 3.5 |
| Resolution 600×1200 |
Pass | 4 |
|---|---|---|
| Printing Speed [m2/h] | 13.5 | |
| Printing Speed [f2/h] | 145.0 | |
| Printing Speed [lm/h] | 22.5 | |
| Printing Speed [lft/h] | 74.0 | |
| Time for 328 lft Roll [h] | 4.5 |
| Resolution 900×1200 |
Pass | 6 |
|---|---|---|
| Printing Speed [m2/h] | 9.0 | |
| Printing Speed [f2/h] | 97.0 | |
| Printing Speed [lm/h] | 15.0 | |
| Printing Speed [lft/h] | 50.0 | |
| Time for 328 lft Roll [h] | 6.7 |
| Resolution 1200X1200 |
Pass | 8 |
|---|---|---|
| Printing Speed [m2/h] | 7.0 | |
| Printing Speed [f2/h] | 75.0 | |
| Printing Speed [lm/h] | 11.0 | |
| Printing Speed [lft/h] | 37.0 | |
| Time for 328 lft Roll [h] | 9.0 |
