The Printer

STS 24″ VJ-628D DTF Printer

At just 24 inches wide, the STS VJ-628D fits into any size print shop. And because it’s powered by STS Inks, you can easily and quickly create custom t-shirts and apparel. This Japanese made compact printer even fits onto a table or optional rolling stand for your use. With a low price point and perfect size, the STS VJ-628D is the best option for anyone entering the custom apparel marketplace.

To upgrade your 628D printer with an internal circulation system inquire here

Printer Program 1

DescriptionQuantity
STS VJ-628D Direct to Film Printer1
Direct to Film 220ml Cart.- Cleaning Solution8
Inkjet Film-Cold Peel Single Sided Matte (roll)1
Direct to Film 220ml Cart.- Cyan1
Direct to Film 220ml Cart.- Magenta1
Direct to Film 220ml Cart.- Yellow1
Direct to Film 220ml Cart.- Black1
Direct to Film 220ml Cart.- White2
Flexi STS DTF Edition with ICC Profiles1
DTF-P-1 TPU Powder- Low Temp 225 F – 2 KG1

Printer Program 2

DescriptionQuantity
STS VJ-628D Direct to Film Printer1
Direct to Film 220ml Cart.- Cleaning Solution8
Inkjet Film-Cold Peel Single Sided Matte (roll)1
Direct to Film- High Capacity- Set of 61
Direct to Film 1L Clear Bag-Cyan1
Direct to Film 1L Clear Bag – Magenta1
Direct to Film 1L Clear Bag- Yellow1
Direct to Film 1L Clear Bag-Black1
Direct to Film 1L Clear Bag-White2
Flexi STS DTF Edition with ICC Profiles1
DTF-P-1 TPU Powder- Low Temp 225 F – 2 KG1
Direct to Film Stand1

Product Inquiry

    Print MethodDrop-On Demand, Piezo Drive
    # of nozzles / # of heads(180 x 8 rows) / 1 head
    Ink typeDTF
    Variable dotYes
    Minimum droplet size3.5 pl
    Print modes720/540/360 dpi 12 modes +
    Color optionsCMYK + 2W + 2 Cleaning
    Maximum resolution1440 dpi
    Head heightLow: 12mm / High 2.5mm
    Maximum media width24.8 inches
    Maximum print width24.4 inches
    Heating systemPre / Post
    Media roll diameter / Core6′ maximum / Core 3″ or 2″
    StandOptional
    Media Auto CutStandard
    RIP softwareSAI/ White RIP STS – DTF
    Power requirements110/220 Volt
    Operating temperature68°F – 75°F
    Operating humidity range45% -55%
    Dimensions (printer) WxDxH47″ x 17″ x 14″
    Dimensions (printer with stand)47″ x 23″ x 46″
    Weight (printer)Printer 70 lbs / Stand 19 lbs
    Weight (shipping info)Call for quote
    Limited warranty1 Year

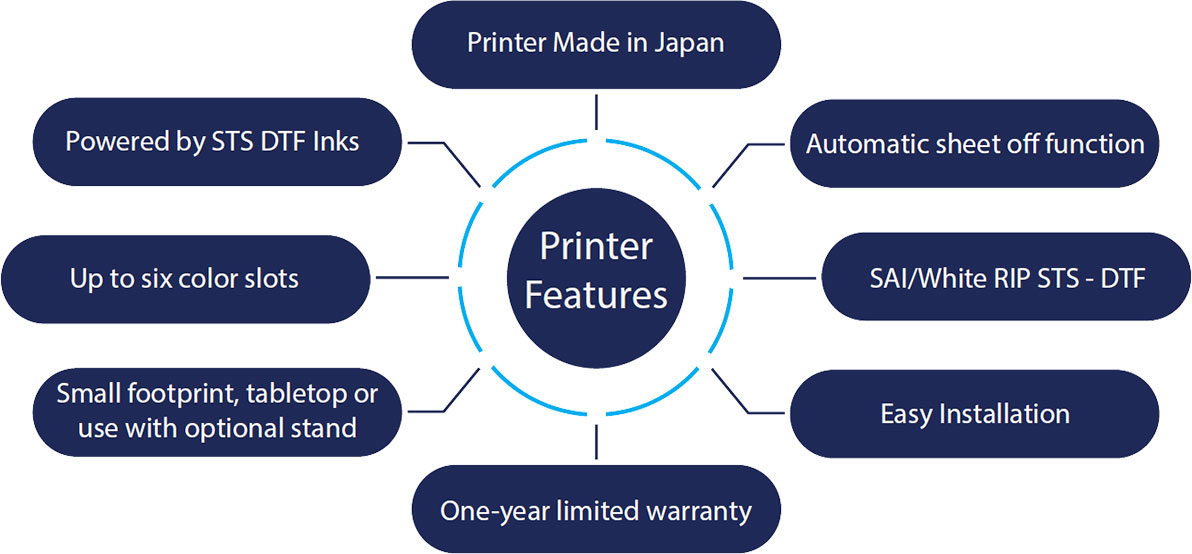

    The Printer Diagram
